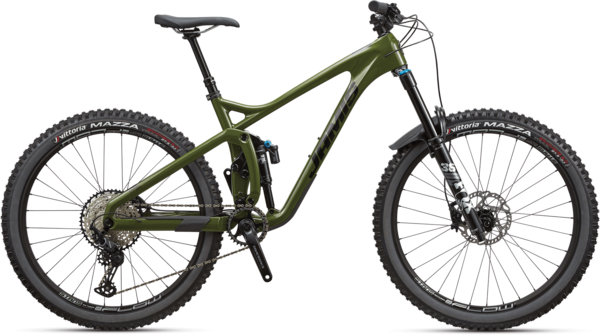

Jamis Hardline C3

Jamis Hardline C3
Color: Mash
Size: Select size
Please select options Unavailable

Details

THREE VARIABLE OPTIMIZED.

1. INSTANT CENTER
With the 3VO system's unique virtual pivot characteristics, we're able to combine the efficiency of a hardtail with the proper support of precisely-controlled active suspension. This is how every full-suspension bike should ride.

2. AXLE PATH
A rear wheel that stays planted while charging through rough terrain is crucial to providing an intimate connection with the trail. 3VO's initial rearward axle path allows the bike to be supple on small bumps and square edge hits while its tightly tuned relationship with the system's leverage ratio keeps the suspension highly reactive even while pedaling.

3. LEVERAGE RATIO
Imagine having two bikes in one, that's essentially what we've got with 3VO. The tuned multi-phase leverage ratio with initial rising rate provides an unparalleled pedaling platform while remaining keenly adept at sustaining repeated bumps without holdup.

Up to just beyond the sag point, the system employs a slight rising rate. Some designs claim an initial falling rate with high initial leverage improves sensitivity and responsiveness, but these claims seem more driven by a need to market a deficiency than by any genuine benefit. Why? Because up until the sag point of the bike, sensitivity and responsiveness are primarily felt when the suspension is able to extend, not compress.

- Dyad Pro High Modulus Carbon Fiber
- 160mm travel 3VO suspension
- Enduro Max sealed bearing pivots
- Fox Float DPX2 Performance Series EVOL shock, 3-position compression
- Fox 36 Performance Series Float 27.5", 3-position adjust compression & lock-out
- Stans Flow S1 27.5" tubeless wheels
- Shimano SLX, 12-speed
- Shimano SLX M7120 4-piston Ice-Tech brakes

Geometry

Geometry Chart:
TT EFFECTIVE
Inch / mm
HT ANGLEST ANGLECHAINSTAY
Inch / mm
WHEELBASE
Inch / mm
BB DROP
Inch / mm
HEADTUBE
Inch / mm
STANDOVER
Inch / mm
STACK
Inch / mm
REACH
Inch / mm
S/15.5" 23.0 / 585 65° 73.5° 16.9 / 429 45.5 / 1157 0.50 / 13.5 3.9 / 100 29.6 / 751 23.0 / 585 16.5 / 418
M/17" 24.0 / 610 65° 73.5° 16.9 / 429 46.5 / 1182 0.50 / 13.5 4.3 / 110 29.3 / 745 23.4 / 595 17.3 / 439
L/19" 25.0 / 635 65° 73.5° 16.9 / 429 47.5 / 1208 0.50 / 13.5 4.7 / 120 29.5 / 749 23.8 / 604 18.2 / 461
XL/21" 26.0 / 660 65° 73.5° 16.9 / 429 48.5 / 1233 0.50 / 13.5 5.1 / 130 30.1 / 765 24.1 / 613 18.9 / 482

Specs

Frame Dyad Pro High Modulus Carbon Fiber, 160mm travel 3VO suspension, Enduro® Max sealed bearing pivots, 1.5 – 1 1/8" tapered head tube, 12x148mm thru-axle, Internal dropper post routing, Custom Jamis upper chain guide mounts, ISCG05 lower chain guide mounts, Fox Float DPX2 Performance Series EVOL shock w/3-position compression, 10mm hardware, replaceable derailleur hanger
Fork Fox 36 Performance Series Float 27.5" w/3-position adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 160mm travel, 44mm rake
Wheels Stans Flow S1 27.5" tubeless wheels, 15x110mm axle front and 12x148mm rear NEO hubs, Sapim Race spokes
Tires Vittoria Mazza 27.5 x 2.4", TNT tubeless
Bottom Bracket Race Face BSA
Crankset Race Face Aeffect, 32T
Shifters Shimano SLX, 1x12-speed
Rear Derailleur Shimano SLX, 12-speed
Cassette/Freewheel Shimano M7100, 12-speed, 10-51T
Chain KMC X12, 12-speed
Brakes Shimano SLX M7120 4-piston Ice-Tech hydraulic disc, RT-70 180mm rotors
Handlebars Race Face Aeffect R, 780mm x 20mm rise, 35mm diameter
Tape/Grips Jamis Lock-On
Stem Race Face Aeffect R, 50mm extension, 35mm clamp diameter
Headset FSA Orbit IS Integrated, 8mm cone spacer
Seatpost Race Face Aeffect R Dropper, 1x remote
Saddle WTB Volt
Pedals Sold separately

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Mash / 15.5-inch 845436084589 03-3649GN
Mash / 17-inch 845436084596 03-3650GN
Mash / 19-inch 845436084602 03-3651GN
Mash / 21-inch 845436084619 03-3652GN
