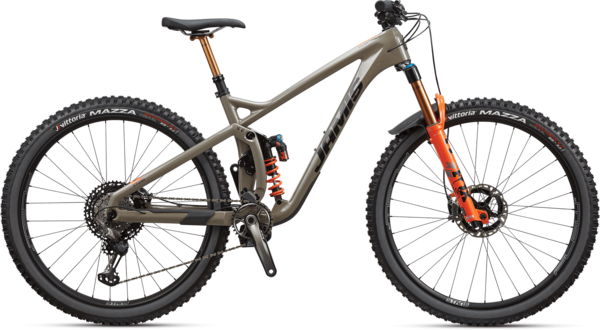

Jamis Portal C1

THREE VARIABLE OPTIMIZED.

1. INSTANT CENTER
With the 3VO system's unique virtual pivot characteristics, we're able to combine the efficiency of a hardtail with the proper support of precisely-controlled active suspension. This is how every full-suspension bike should ride.

2. AXLE PATH
A rear wheel that stays planted while charging through rough terrain is crucial to providing an intimate connection with the trail. 3VO's initial rearward axle path allows the bike to be supple on small bumps and square edge hits while its tightly tuned relationship with the system's leverage ratio keeps the suspension highly reactive even while pedaling.

3. LEVERAGE RATIO
Imagine having two bikes in one, that's essentially what we've got with 3VO. The tuned multi-phase leverage ratio with initial rising rate provides an unparalleled pedaling platform while remaining keenly adept at sustaining repeated bumps without holdup.

Up to just beyond the sag point, the system employs a slight rising rate. Some designs claim an initial falling rate with high initial leverage improves sensitivity and responsiveness, but these claims seem more driven by a need to market a deficiency than by any genuine benefit. Why? Because up until the sag point of the bike, sensitivity and responsiveness are primarily felt when the suspension is able to extend, not compress.

- Dyad Pro High Modulus Carbon Fiber
- 130mm travel 3VO suspension
- Enduro Max sealed bearing pivots
- Fox DHX2 Factory Series coil shock w/2-position compression switch
- Fox 36 Factory Series Float 29" w/ 3-position adjust compression & lock-out
- Stans Flow CB7 Carbon 29" tubeless wheels
- Shimano XTR drivetrain
- Shimano XTR 4-piston brakes
