Redline Recon

Redline Recon
  • Color: Blue
  • Color: Blue
  • Color: Gray
  • Color: Gray
Please select options
This item is not permitted to be shipped, however it can be purchased online and picked up at your convenience.

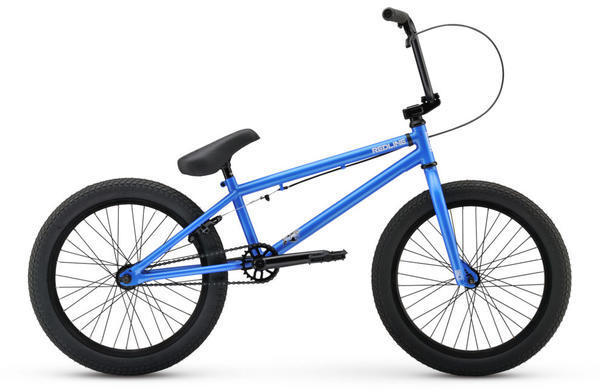

When it's time to step up to the performance capabilities of a true BMX bike, the Redline Recon checks all the right boxes. The Recon is loaded with trickle-down features found on more expensive bikes, like 25/9 micro gearing, tall 8.25-inch bars, and chromoly 3-piece cranks so you can progress with the best. Redline 36-hole alloy rims paired to wide 20x2.3 tires create a solid platform for all your flatland tricks, and a Tektro rear brake lets you reign things in when the big line's looking a little sketchy.


Frame Hi-Ten Machined Head tube, Device type 5mm dropouts
Fork RL Monster Tapered leg fork
Headset Threadless 1 1/8
Axles (F) Heat Treated 3/8"; (R) Chromoly 14mm
Rims/Wheels RL 36h Alloy
Hubs (F) RL Spec; (R) RL Aluminum, Fully Sealed
Spokes Black
Tires RL 20x2.3 Park/Street
Crankset RL 100% Chromo 170mm 3pc Tubular Cranks
Chainrings 25T
Bottom Bracket American
Chain KMC Z410
Freewheel 9T
Handlebars RL Hi-Ten 8.25" Rise/ 28" Wide, 12 degree Back, 1 degree Up
Tape/Grips RL Monster 151 Flangeless w/Plugs
Stem RL Hi-Rise Top Load, 50mm
Brake Levers Tektro
Brakes Tektro FX 340 Rear
Pedals RL Spec 9/16" Ultra Low Profile Resin Platform
Saddle RL Monster Padded Combo
Seat Post 25.4mm

* Subject to change without notice.

Part Numbers

Option UPC
Blue / 20.4-inch 791964529057
Gray / 20.4-inch 791964528975
