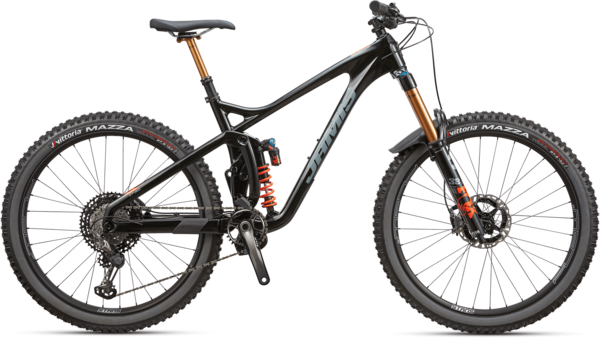

Jamis Hardline C1

Jamis Hardline C1
Color: Black
Size: Select size
Please select options Unavailable

Details

THREE VARIABLE OPTIMIZED.

1. INSTANT CENTER
With the 3VO system's unique virtual pivot characteristics, we're able to combine the efficiency of a hardtail with the proper support of precisely-controlled active suspension. This is how every full-suspension bike should ride.

2. AXLE PATH
A rear wheel that stays planted while charging through rough terrain is crucial to providing an intimate connection with the trail. 3VO's initial rearward axle path allows the bike to be supple on small bumps and square edge hits while its tightly tuned relationship with the system's leverage ratio keeps the suspension highly reactive even while pedaling.

3. LEVERAGE RATIO
Imagine having two bikes in one, that's essentially what we've got with 3VO. The tuned multi-phase leverage ratio with initial rising rate provides an unparalleled pedaling platform while remaining keenly adept at sustaining repeated bumps without holdup.

Up to just beyond the sag point, the system employs a slight rising rate. Some designs claim an initial falling rate with high initial leverage improves sensitivity and responsiveness, but these claims seem more driven by a need to market a deficiency than by any genuine benefit. Why? Because up until the sag point of the bike, sensitivity and responsiveness are primarily felt when the suspension is able to extend, not compress.

- Dyad Pro High Modulus Carbon Fiber
- 160mm travel 3VO suspension
- Enduro Max sealed bearing pivots
- Fox DHX2 Factory Series coil shock w/2-position compression switch
- Fox 38 Factory Series Float 27.5" w/ 3-position adjust compression & lock-out
- Stans Flow CB7 Carbon 27.5" tubeless wheels
- Shimano XTR, 12-speed
- Shimano XTR M9120 4-piston Ice-Tech brakes

Geometry

Geometry Chart:
TT EFFECTIVE
Inch / mm
HT ANGLEST ANGLECHAINSTAY
Inch / mm
WHEELBASE
Inch / mm
BB DROP
Inch / mm
HEADTUBE
Inch / mm
STANDOVER
Inch / mm
STACK
Inch / mm
REACH
Inch / mm
S/15.5" 23.0 / 585 65° 73.5° 16.9 / 429 45.5 / 1157 0.50 / 13.5 3.9 / 100 29.6 / 751 23.0 / 585 16.5 / 418
M/17" 24.0 / 610 65° 73.5° 16.9 / 429 46.5 / 1182 0.50 / 13.5 4.3 / 110 29.3 / 745 23.4 / 595 17.3 / 439
L/19" 25.0 / 635 65° 73.5° 16.9 / 429 47.5 / 1208 0.50 / 13.5 4.7 / 120 29.5 / 749 23.8 / 604 18.2 / 461
XL/21" 26.0 / 660 65° 73.5° 16.9 / 429 48.5 / 1233 0.50 / 13.5 5.1 / 130 30.1 / 765 24.1 / 613 18.9 / 482

Specs

Frame Dyad Pro High Modulus Carbon Fiber, 160mm travel 3VO suspension, Enduro® Max sealed bearing pivots, 1.5 – 1 1/8" tapered head tube, 12x148mm thru-axle, Internal dropper post routing, Custom Jamis upper chain guide, MRP SXg lower chain guide, Fox DHX2 Factory Series coil shock w/2-position compression switch, SLS 400lb Spring, high/low speed compression, high/low speed rebound,10mm hardware, replaceable derailleur hanger
Fork Fox 38 Factory Series Float 27.5" w/3-position adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 170mm travel, 44mm rake
Wheels Stans Flow CB7 Carbon 27.5" tubeless wheels, 15x110mm axle front and 12x148mm rear NEO hubs, Sapim Force spokes
Tires Vittoria Mazza 27.5 x 2.4", TNT tubeless
Bottom Bracket Shimano BSA
Crankset Shimano XTR M9120, 32T
Shifters Shimano XTR, 1x12-speed
Rear Derailleur Shimano XTR, 12-speed
Cassette/Freewheel Shimano M9100, 12-speed, 10-51T
Chain Shimano M9100, 12-speed
Brakes Shimano XTR M9120 4-piston Ice-Tech hydraulic disc, RT-900 180mm rotors
Handlebars Race Face Turbine R, 800mm x 20mm rise, 35mm diameter
Tape/Grips Jamis Lock-On
Stem Race Face Turbine R, 50mm extension, 35mm clamp diameter
Headset FSA Orbit IS Integrated, 8mm cone spacer
Seatpost Fox Transfer Factory Series Dropper, 1x remote
Saddle WTB Volt
Pedals Sold separately

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Black / 15.5-inch 845436084503 03-3641BK
Black / 17-inch 845436084510 03-3642BK
Black / 19-inch 845436084527 03-3643BK
Black / 21-inch 845436084534 03-3644BK
