Jamis Highpoint A1
Details
TRUE ALL-AROUNDER
Designed with geometry like our Komodo, the Highpoint is ready to tackle all aspects of trail riding. With a 5" travel fork with thru-axle and tubeless rims, the Highpoint performs as a true all-arounder. It's a fact: larger wheels roll over obstacles more easily than smaller wheels. Stuff like rocks, logs, and stutter bumps. In other words, they'll roll easier and faster on the trails you ride.
FRAME MATERIALS
Highpoint features lightweight and strong triple-butted 6061 series aluminum tubing, featuring over-sized & tapered tubing for increased frame stiffness.
- 6061 triple-butted aluminum
- Rock Shox Judy Silver TK 29", Solo Air compression, external rebound, Turn Key lockout, 120mm travel
- WTB STX i23 TCS tubeless 29" rims, 32H, alloy disc hubs
- Shimano Deore Shadow Plus rear, 11-speed
- Shimano Deore, 32T Crank
- Shimano MT200 hydraulic disc brakes
- Jamis XC alloy handlebar and stem
- Selle Royal Vivo Saddle

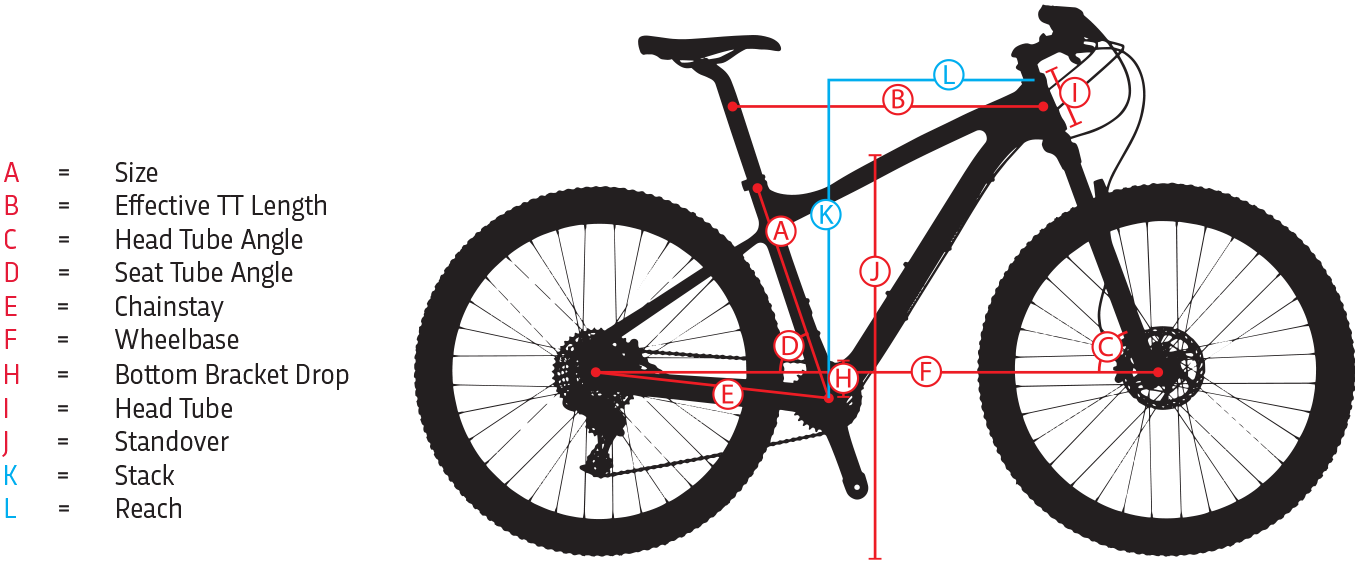

TT EFFECTIVE Inch / mm | HT ANGLE | ST ANGLE | CHAINSTAY Inch / mm | WHEELBASE Inch / mm | BB DROP Inch / mm | HEADTUBE Inch / mm | STANDOVER Inch / mm | STACK Inch / mm | REACH Inch / mm | |
---|---|---|---|---|---|---|---|---|---|---|
S/15.5" | 23.0 / 585 | 68° | 74° | 17.3 / 440 | 44 / 1126 | 2.4 / 60 | 3.5 / 90 | 30.0 / 763 | 25.0 / 635 | 15.9 / 403 |
M/17" | 24.0 / 610 | 68° | 74° | 17.3 / 440 | 45 / 1152 | 2.4 / 60 | 3.9 / 100 | 31.5 / 799 | 25.4 / 644 | 16.7 / 425 |
L/19" | 25.0 / 635 | 68° | 74° | 17.3 / 440 | 46 / 1178 | 2.4 / 60 | 4.3 / 110 | 32.9 / 836 | 25.7 / 653 | 17.6 / 447 |
XL/21" | 26.0 / 660 | 68° | 74° | 17.3 / 440 | 47 / 1204 | 2.4 / 60 | 4.7 / 120 | 34.2 / 868 | 26.1 / 663 | 18.5 / 470 |
Specs
Frame | 6061triple-butted aluminum main tubes, 1.5 – 1 1/8" tapered head tube, over-sized stays, replaceable derailleur hanger |
---|---|
Fork | Rock Shox Judy Silver TK 29", Solo Air compression, external rebound, Turn Key lockout, 30mm steel stanchions, magnesium lowers, 15x110mm axle, 120mm travel, 51mm rake |
Wheels | WTB STX i23 TCS tubeless 29" rims, 32H, alloy disc hubs, 14G black electroplated spokes |
Tires | WTB Trailboss, 29 x 2.25" |
Bottom Bracket | Shimano BSA |
Crankset | Shimano Deore, 32T |
Shifters | Shimano Deore, 1×11-speed |
Cassette/Freewheel | Shimano HG5100, 11-speed, 11-51T |
Chain | KMC X11, 11-speed |
Brakes | Shimano MT200 hydraulic disc, Shimano RT26 160mm rotors |
Handlebars | Jamis XC alloy riser, 31.8 x 20mm rise x 740mm |
Tape/Grips | Kraton |
Stem | Jamis XC alloy threadless, 31.8 x 60mm |
Headset | Zero-stack internal cup, 15mm cone spacer |
Seatpost | Jamis alloy micro-adjust, 31.6 x 400mm |
Saddle | Selle Royal Vivo |
Pedals | MTB platform, hi-impact resin |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Riptide / 15-inch | 845436085210 | 03-3712BL |
Riptide / 17-inch | 845436085227 | 03-3713BL |
Riptide / 19-inch | 845436085234 | 03-3714BL |
Riptide / 21-inch | 845436085241 | 03-3715BL |
